Dactyl Manuform 5x6

A build guide for Dactyl Manuform 5 x 6

The dactyl manuform is an open source ergonomic split keyboard. This board is a mixture of two other open source split ergonomic keyboards: namely the dactyl and the manuform. Thus you can see where it gets its name from.

⚠️⚠️WORK IN PROGRESS⚠️⚠️

This guide is a work in progress. I'm currently working through building it so don't take it as gospel until it's done. I'd rather publish things incrementally than leave it all until the very end to make sure I capture all of my thoughts.

Materials

| Material | Description | Quantity | Cost | Link | | ---------------------------------------------------- | ----------- | -------- | ---- | -------------------------- | | 1418 diode | | | | | | Amoeba single switch pcb | | | | Keebio | | Elite C micro controller | | | | | | Female Lemo socket | | | | | | Harajuku pink filament | | | | | | Mill-Max Manufacturing Corp. 0305-2-15-80-47-80-10-0 | | | | Digikey | | Kester leaded solder | | | | | | Male Lemo socket | | | | | | Male TRRS connector | | | | | | Female TRRS jack | | | | | | Male USB-C connector | | | | | | Wire | | | | |

Tools

| Tool | Use | Link | | ---------------- | --- | ---- | | Cutting mat | | | | Tweezers | | | | Soldering iron | | | | Desoldering pump | | | | Loupe | | | | Wire stripper | | | | Alligator clips | | |

Part list breakdown

We'll discuss why we chose each part

Some names

Before we begin I want to make sure that we're on the same page. Let's give some names to a few things to make it easier to communicate throughout the guide.

Board orientation

Top

Bottom

Fabrication

Tips

Don't go following these tips quite yet. Just peruse through before beginning your build.

Bending diode legs

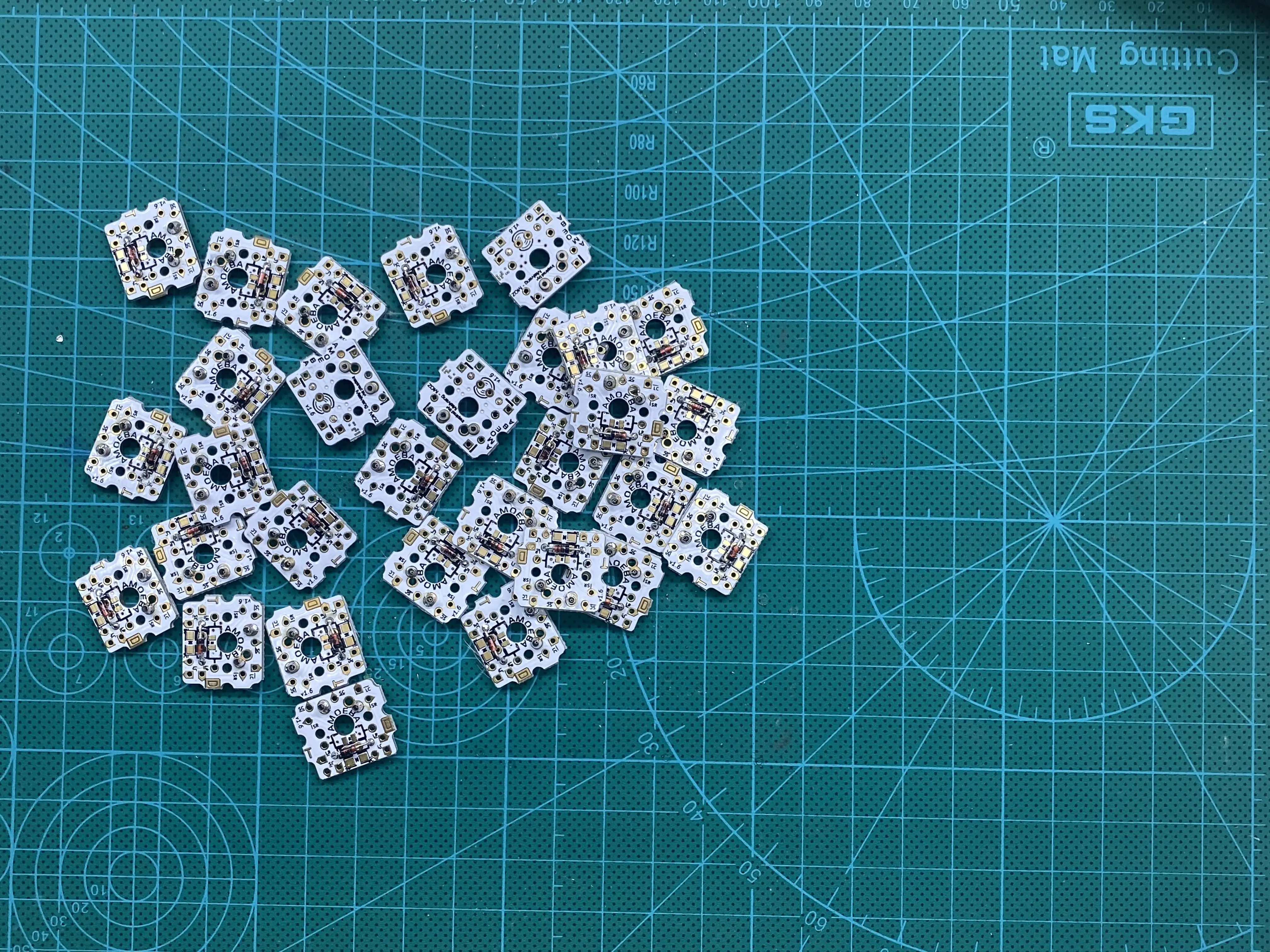

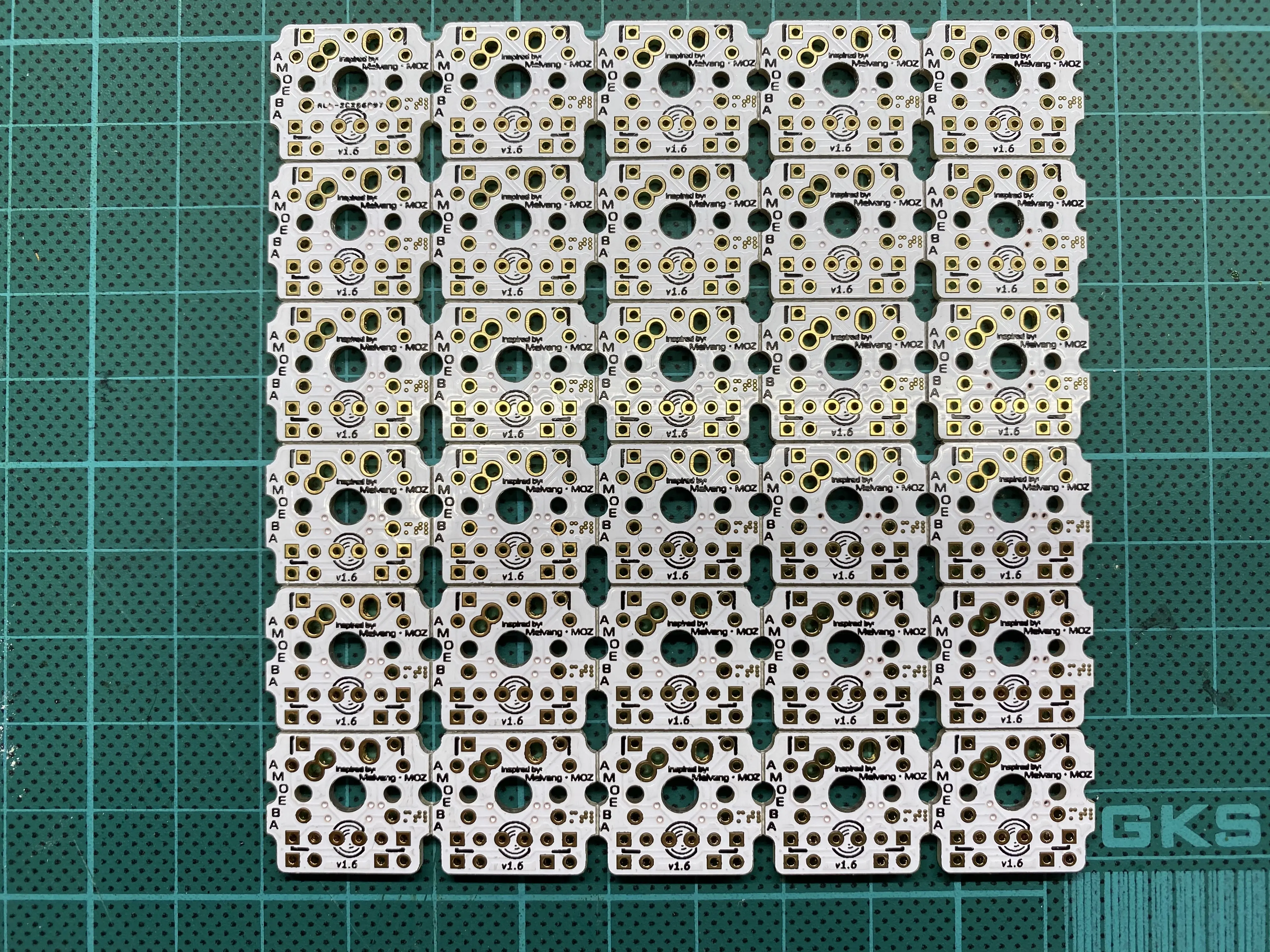

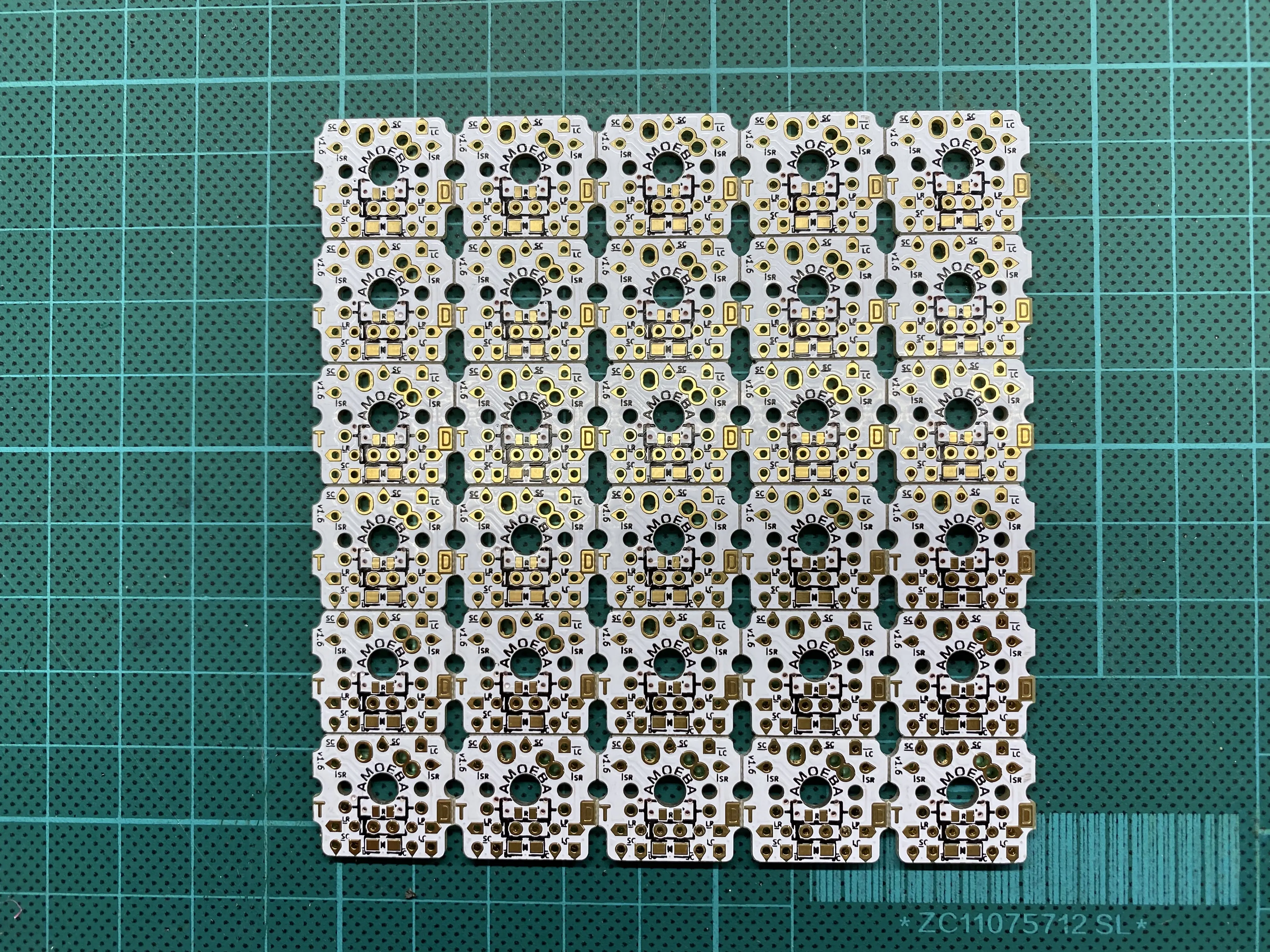

Breaking up the amoeba boards

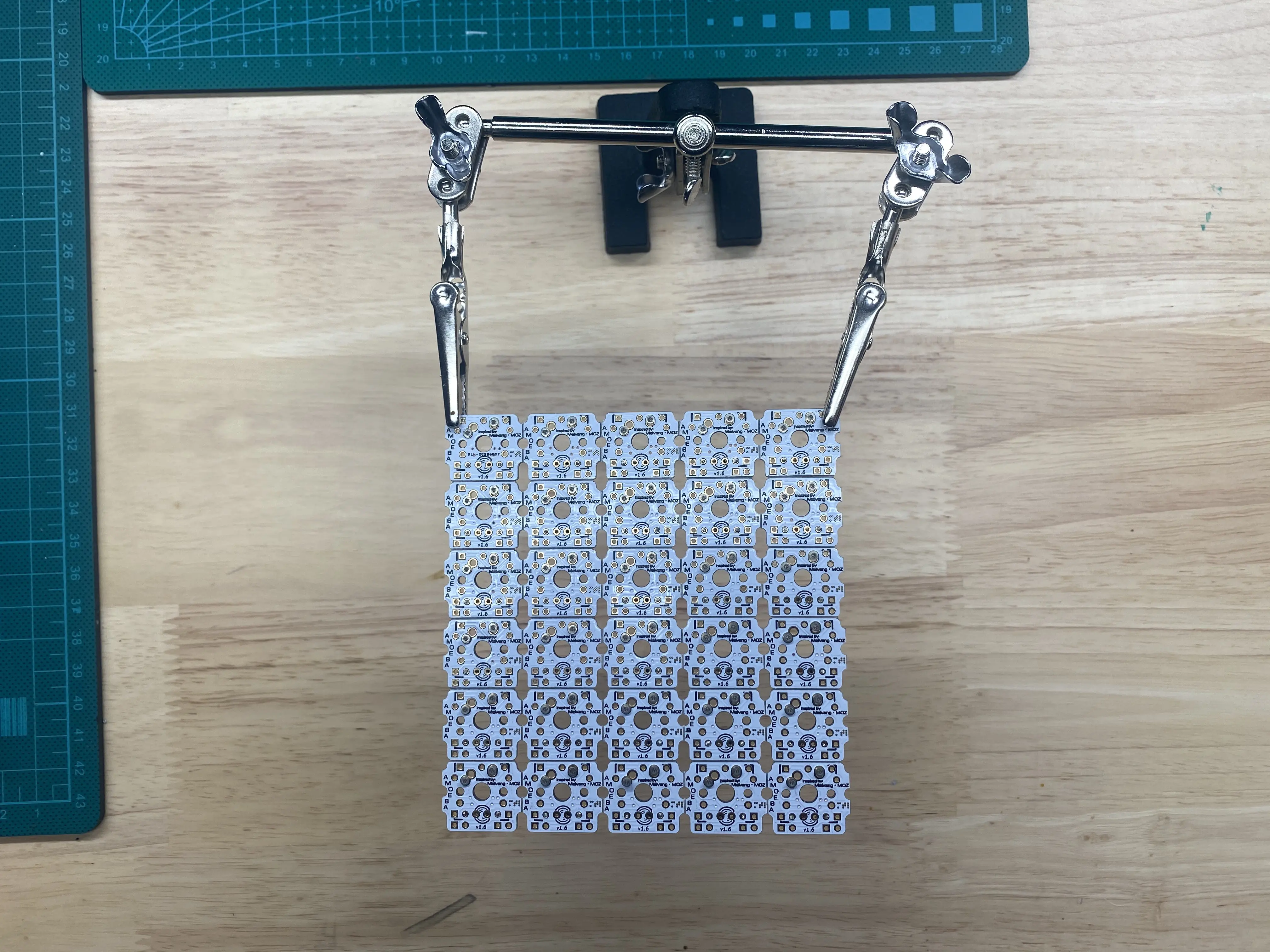

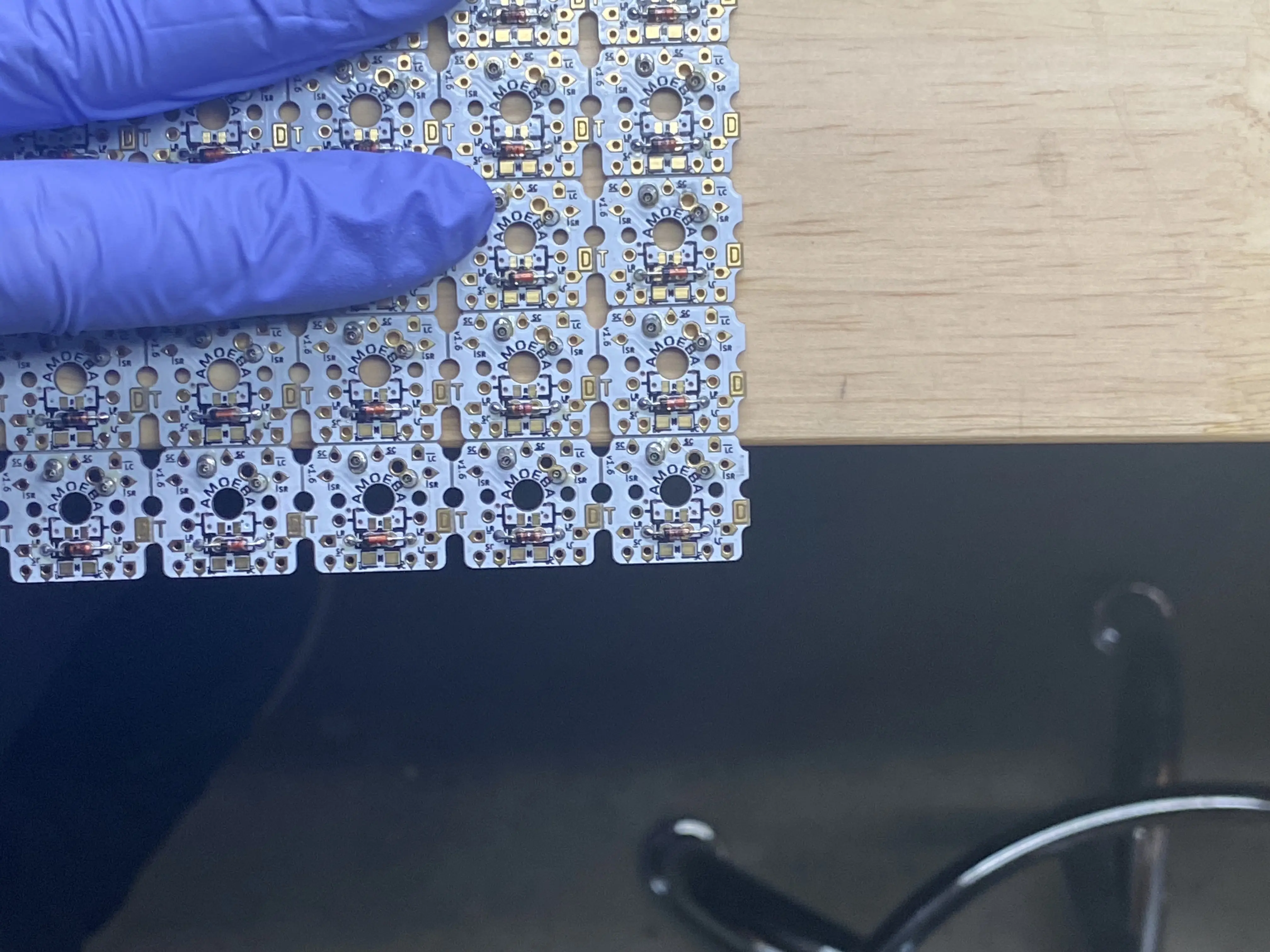

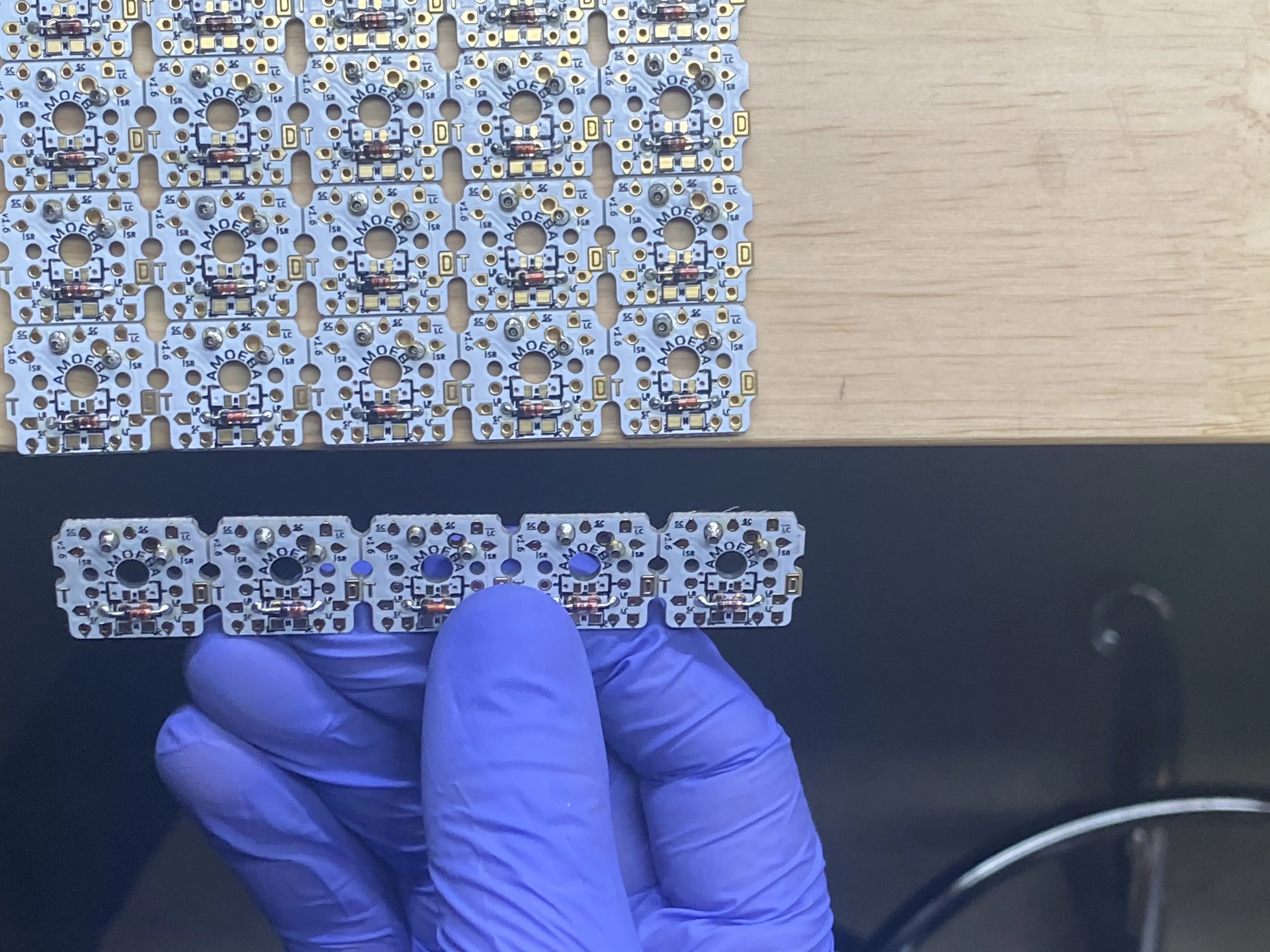

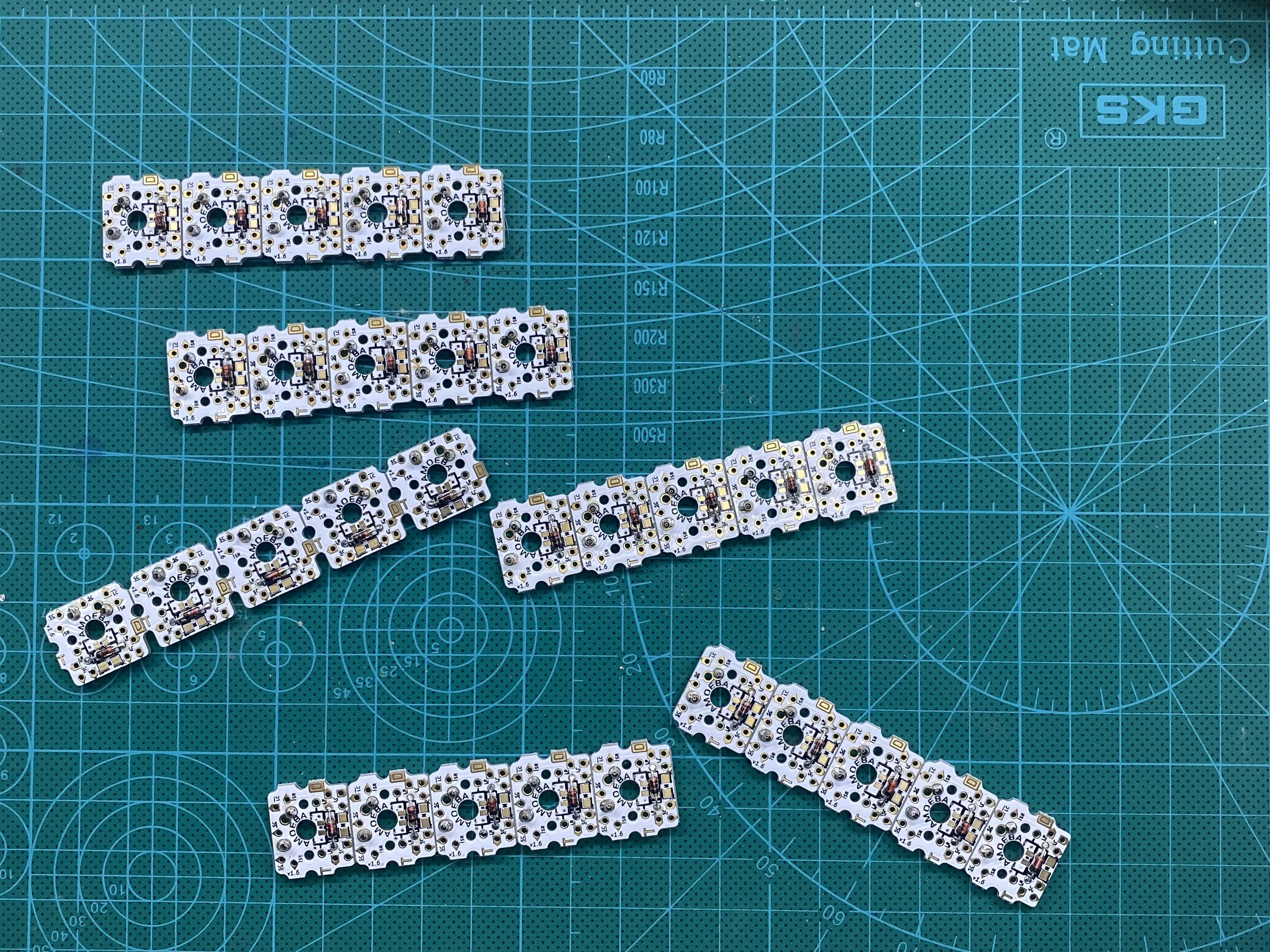

Breaking the boards can be difficult. Sometimes it can feel like you're going to break it the wrong way. I've found the easiest way to break off the individual pcbs is to let one row of the board hang off of a table.
