MASH steel all-road mullet build

Photos

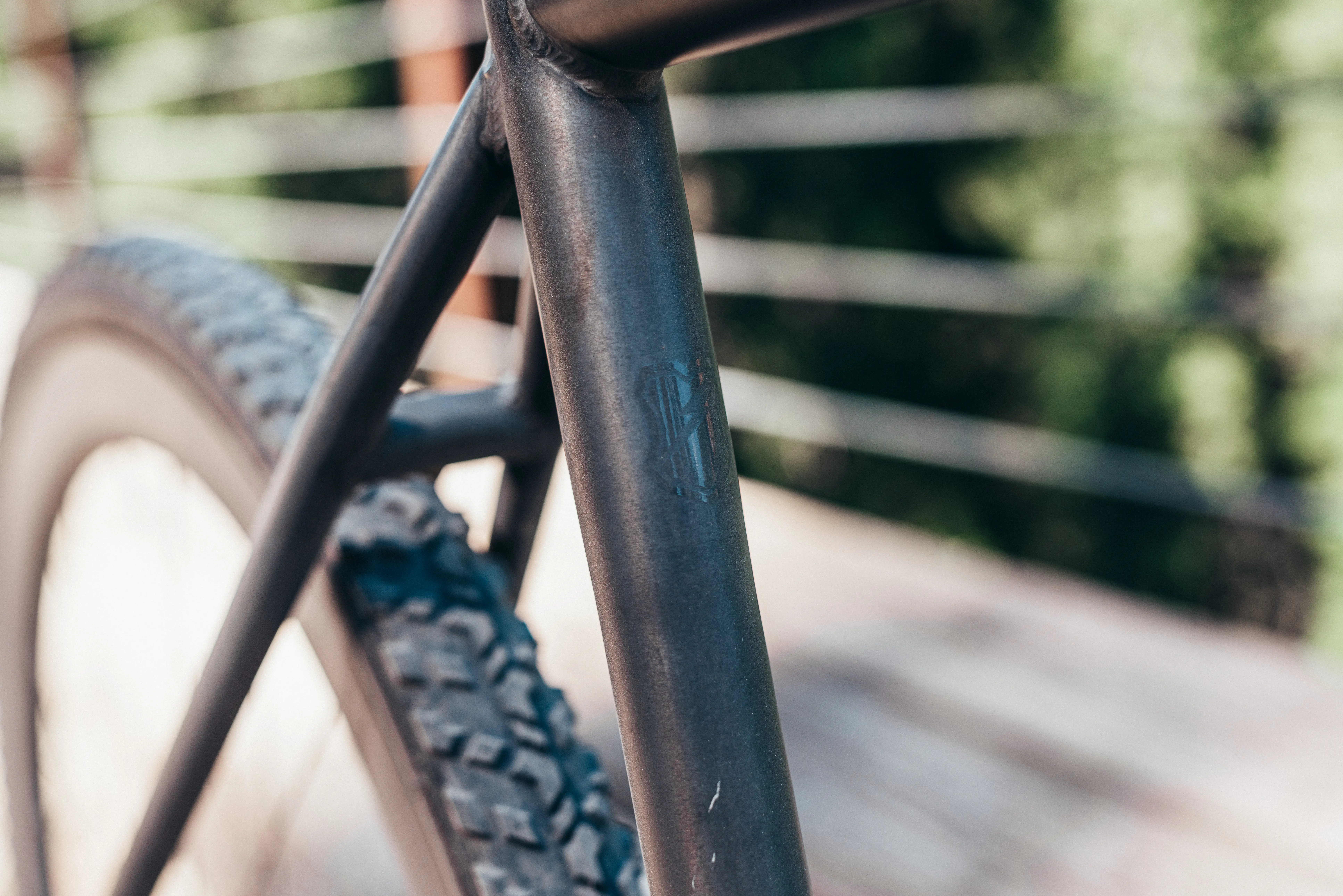

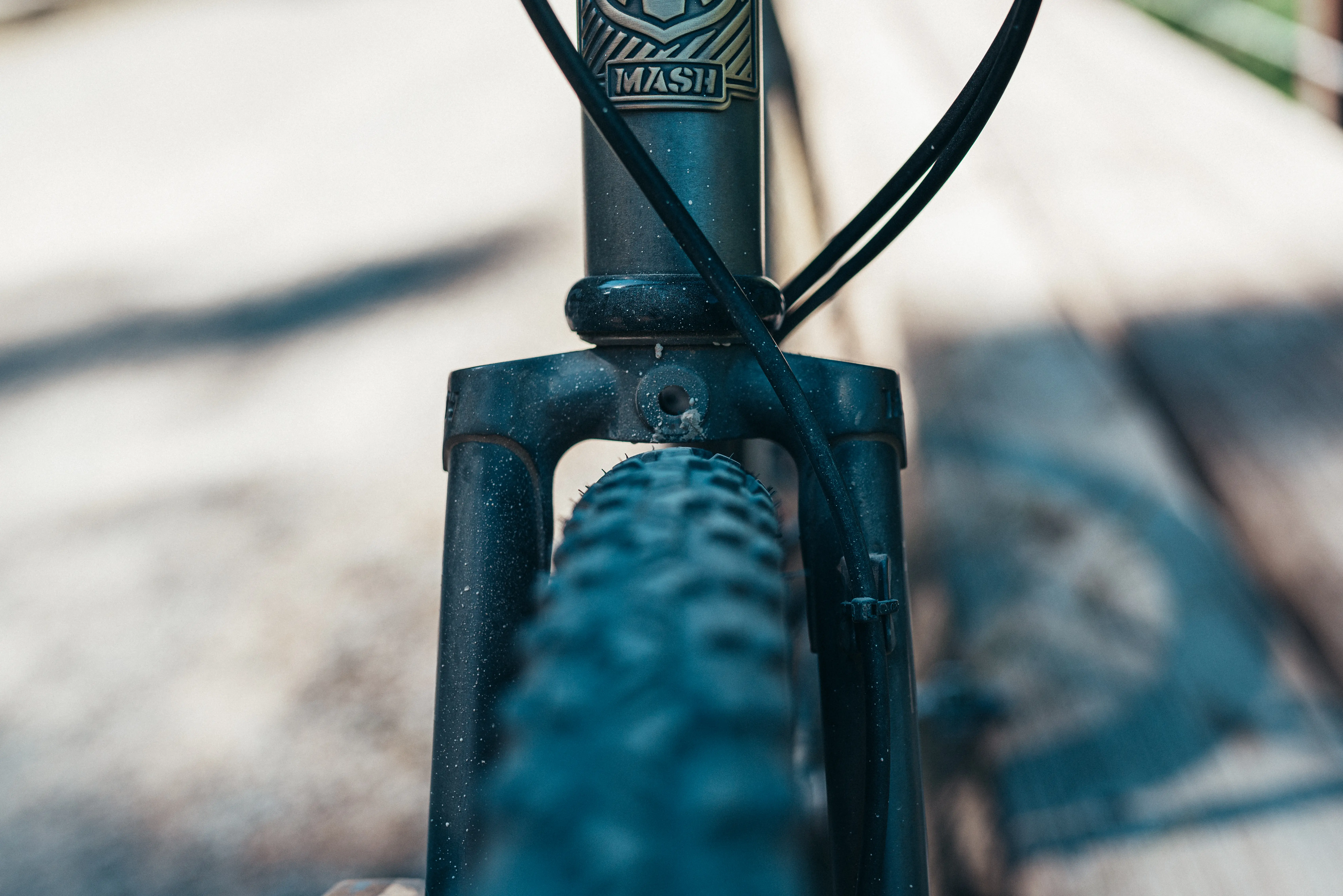

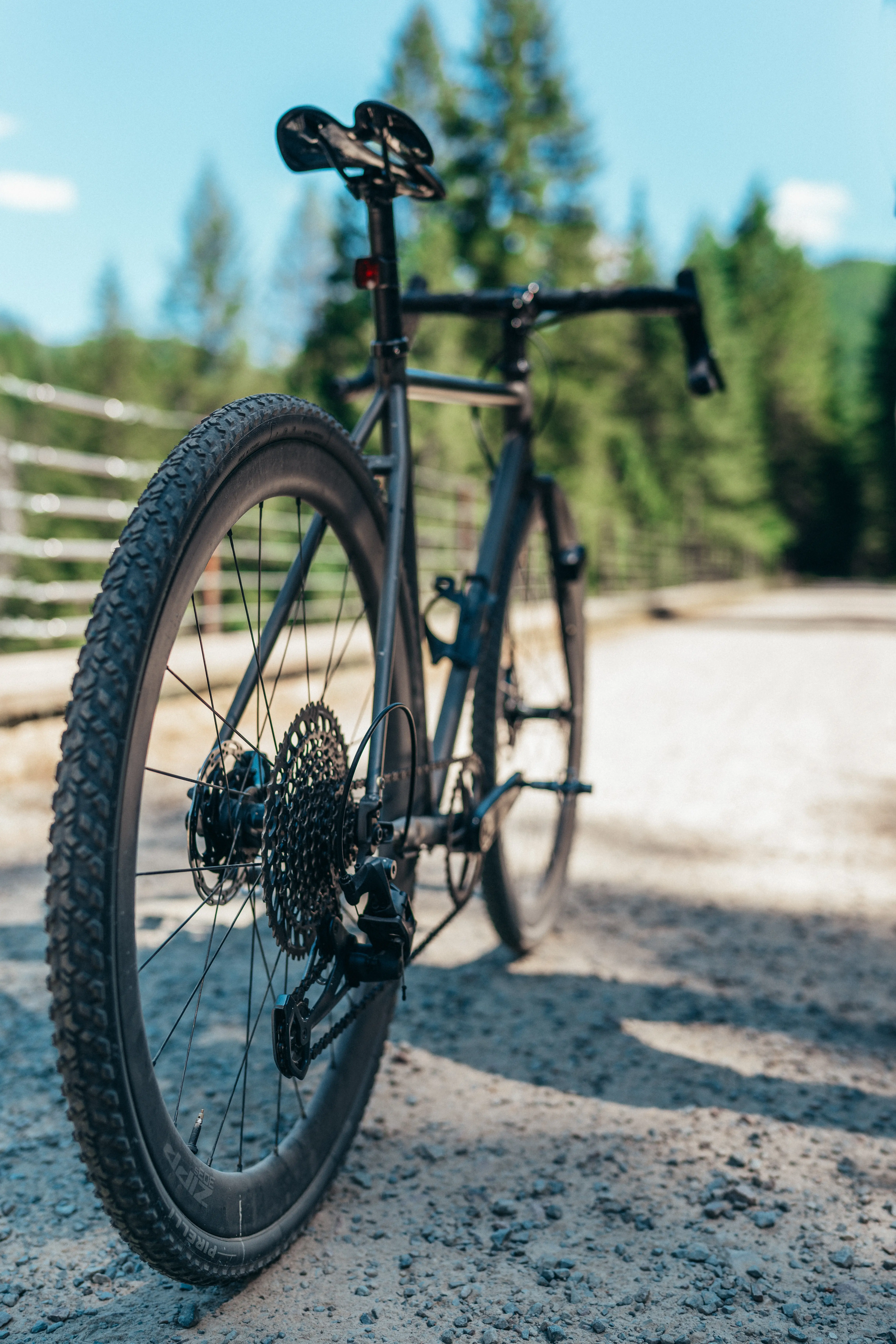

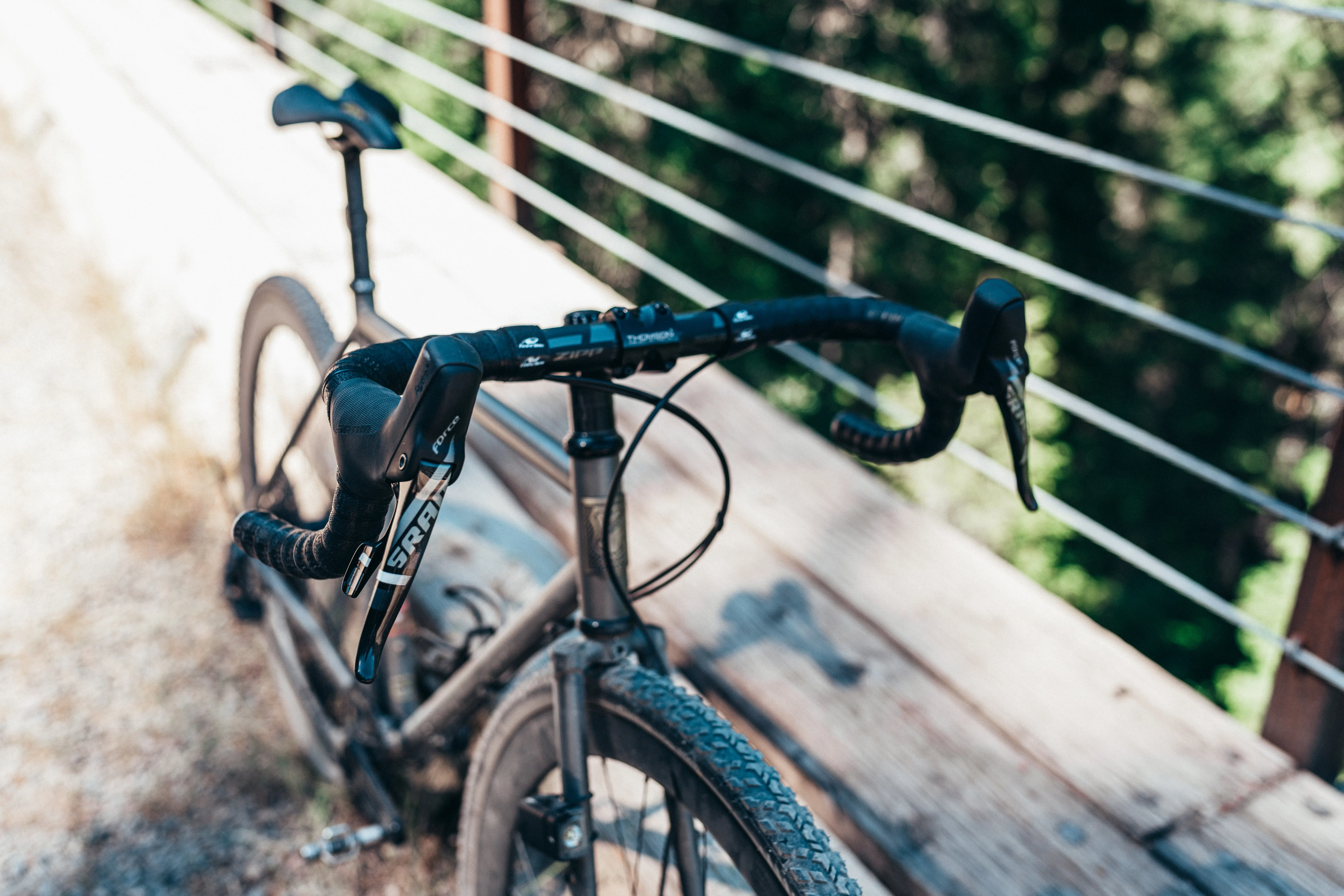

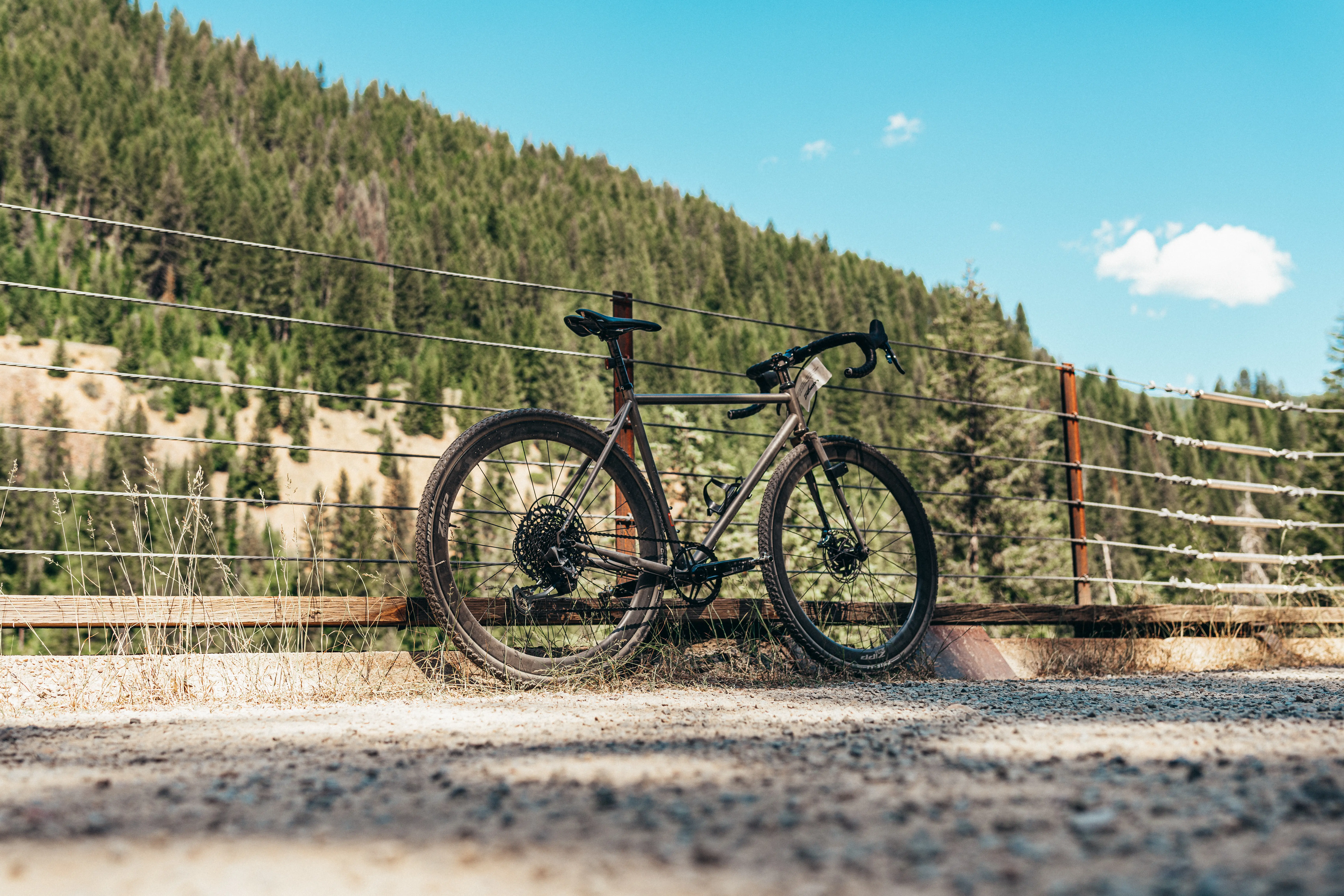

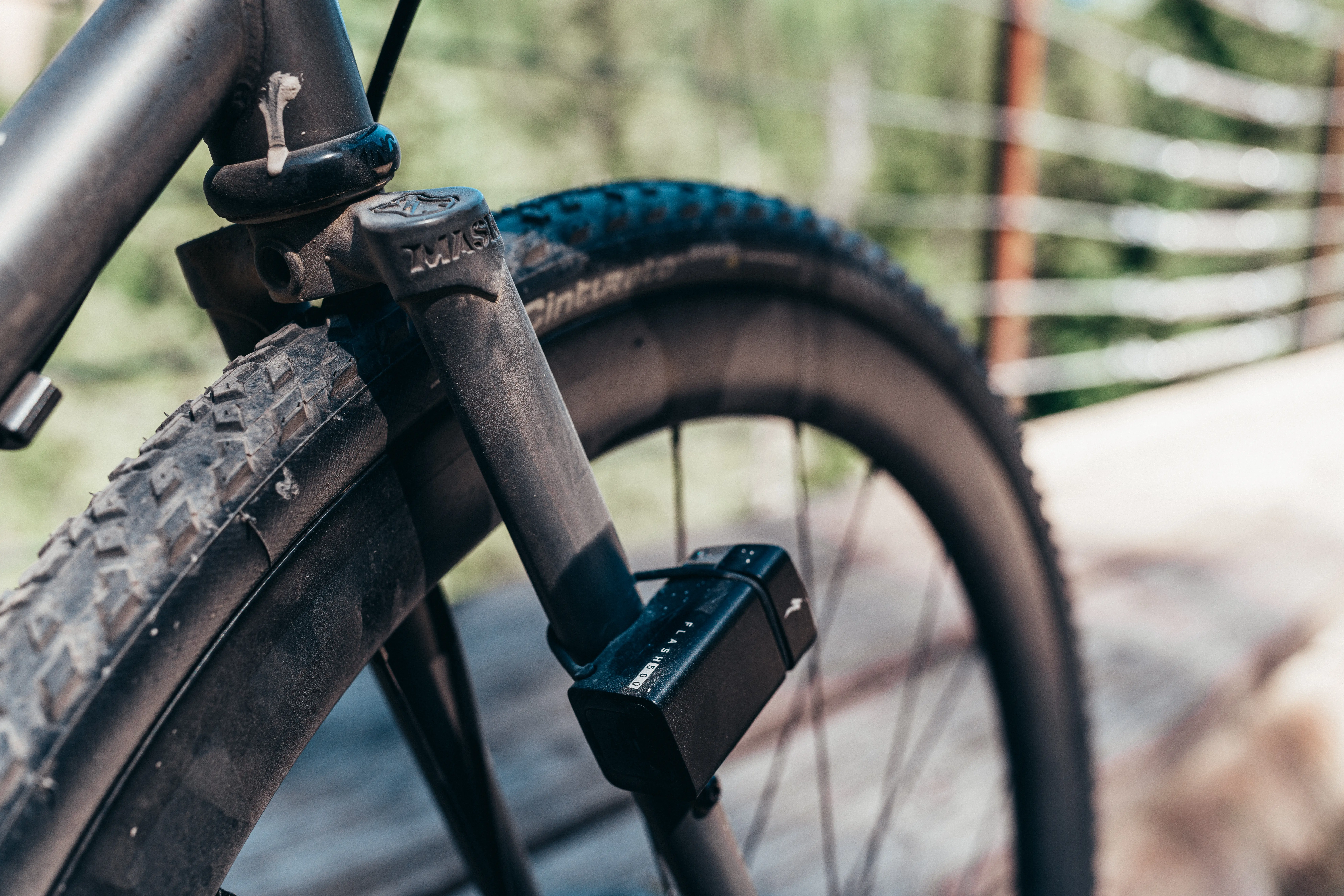

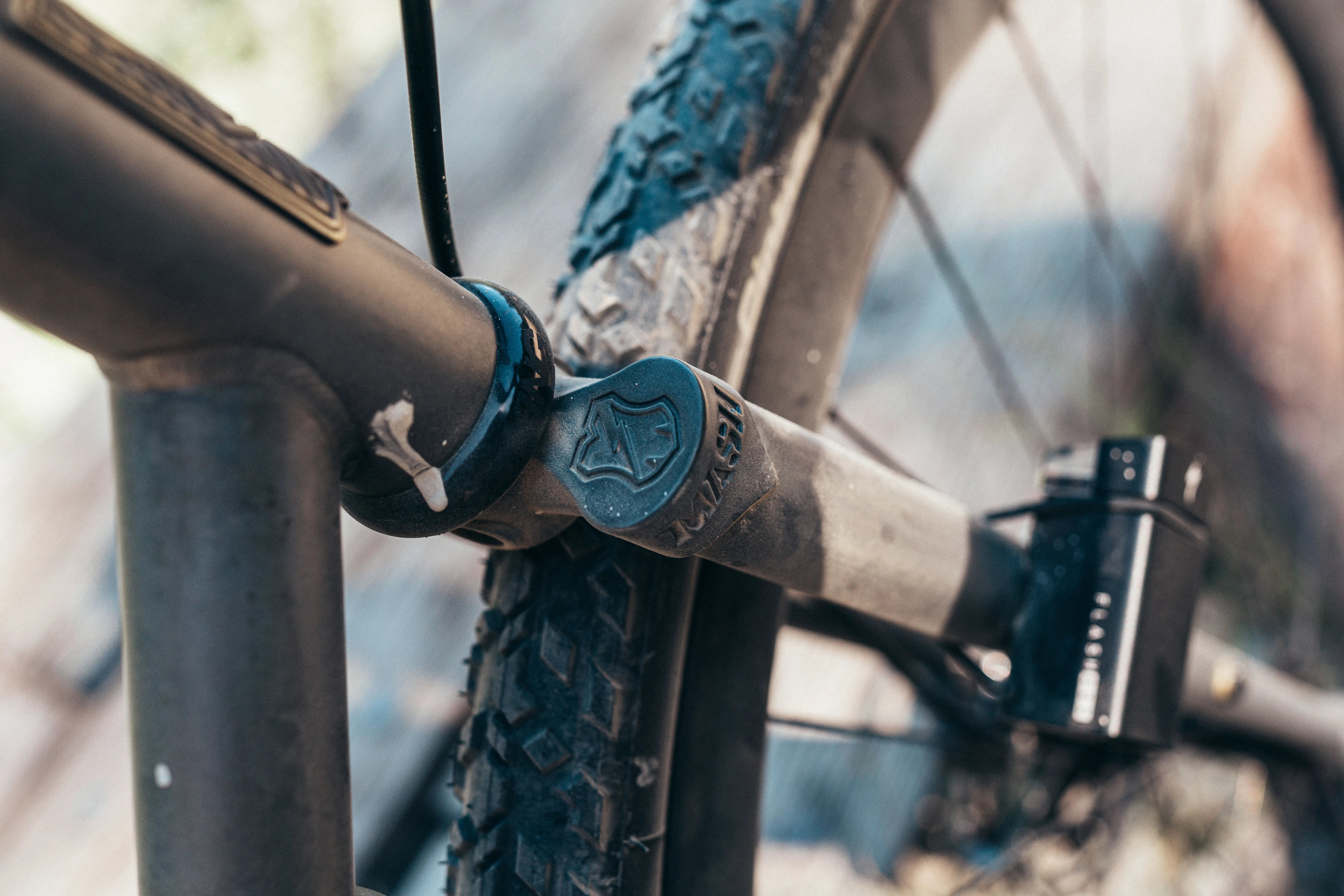

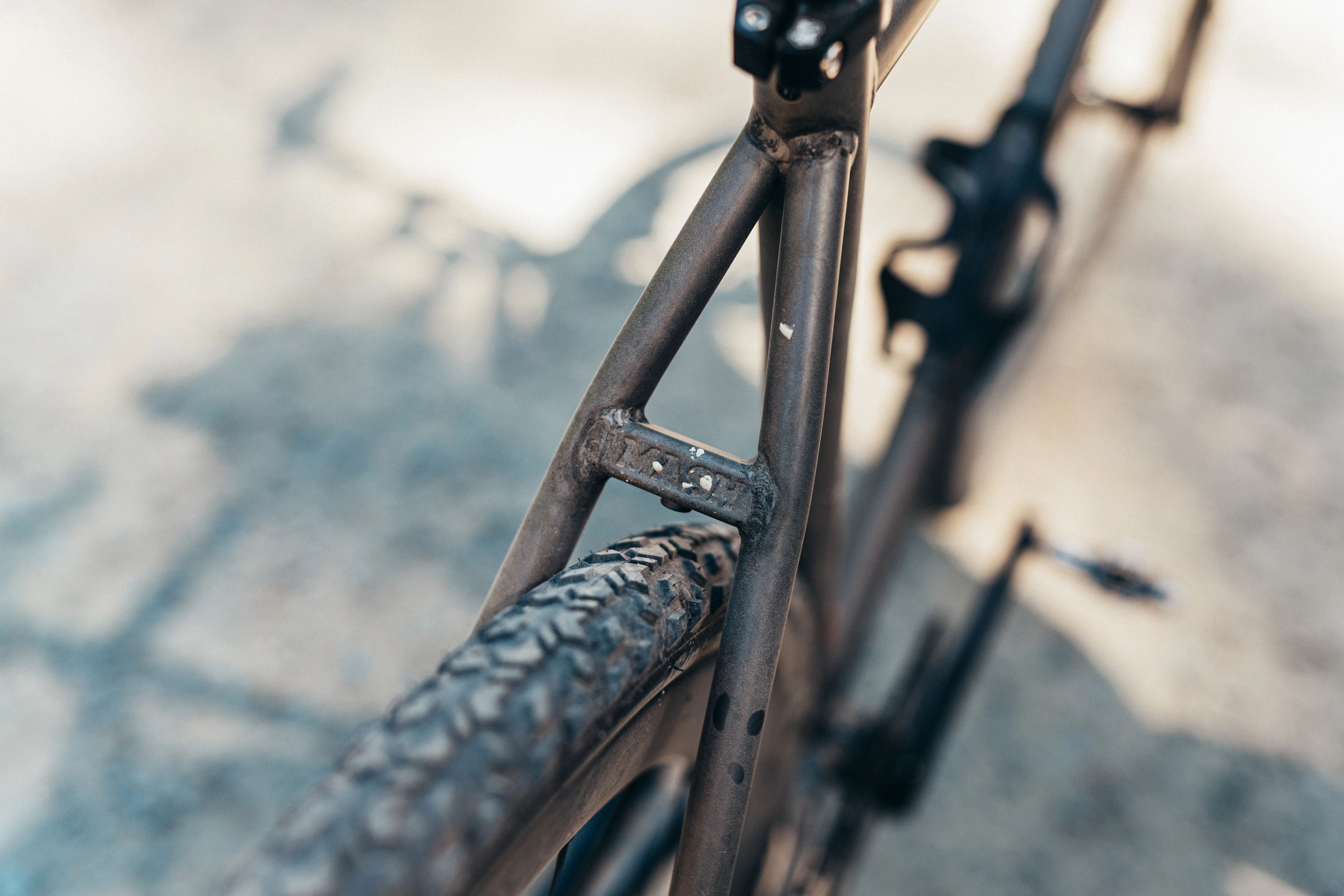

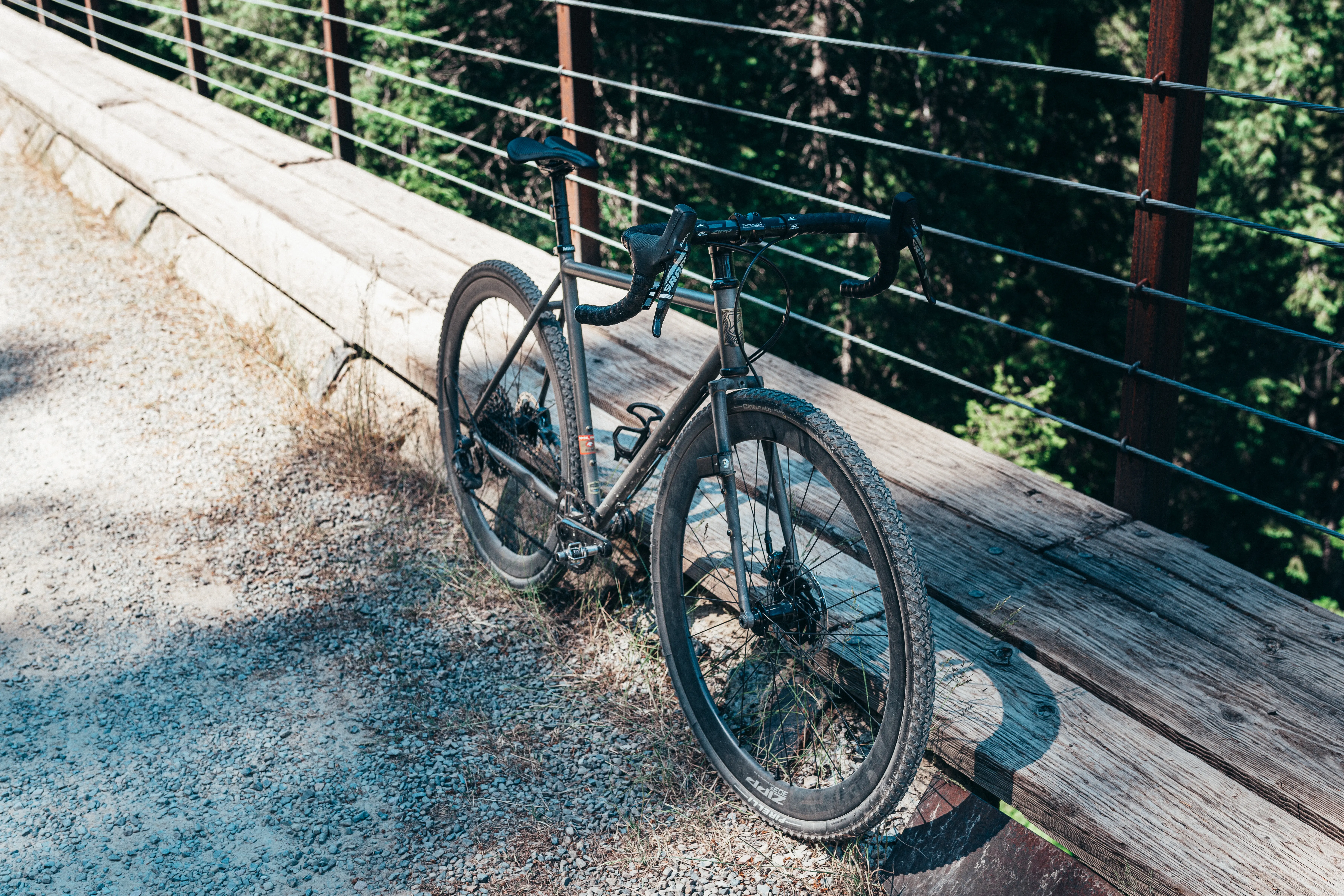

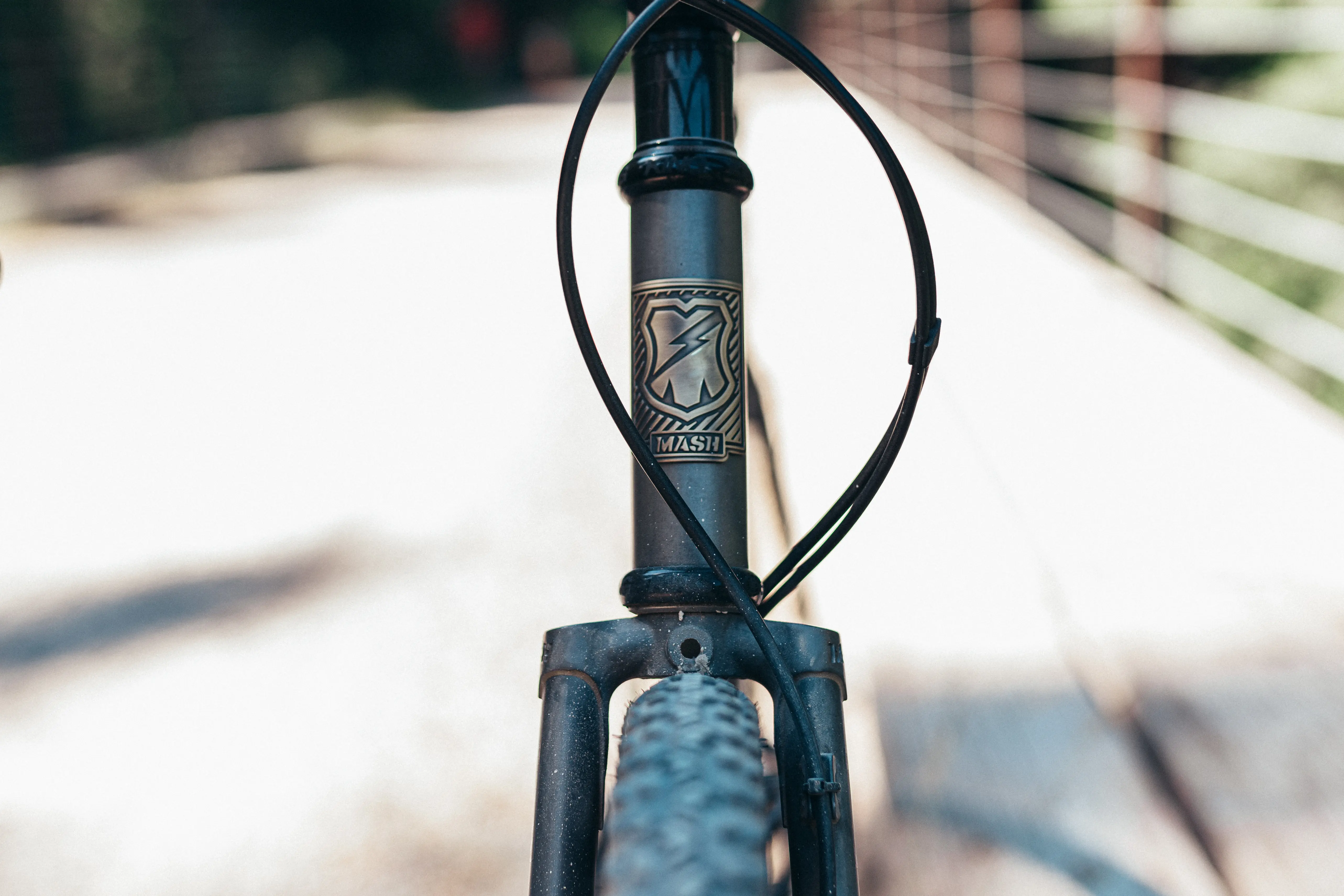

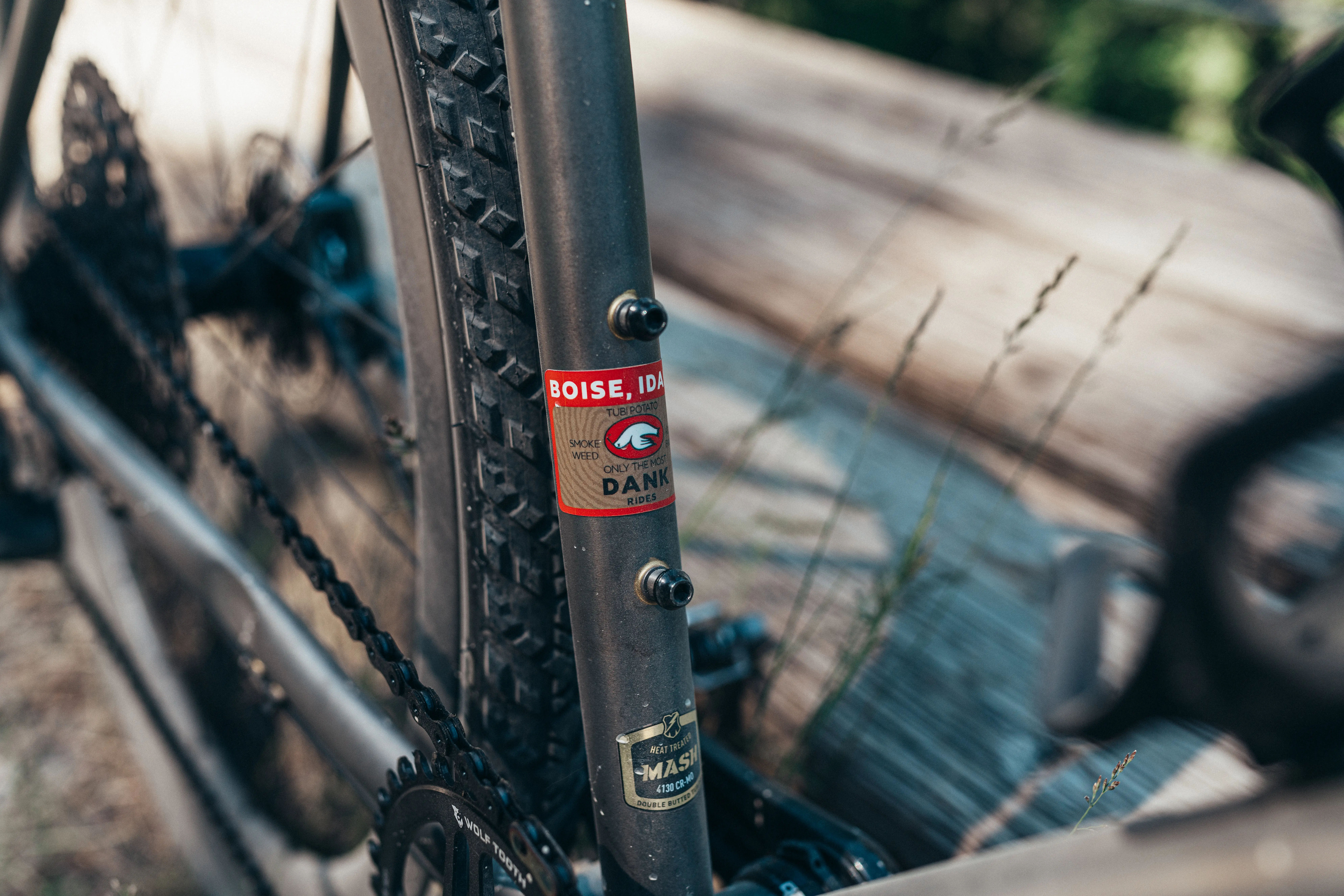

Allyanna Wintermote took these photos while we were riding on the Hiawatha Trail in northern Idaho.

Parts

Frame

Frame: MASH Butted steel
Fork rake: 43 mm
Seatpost size: 27.2 mm
Seat collar size: 30.0 mm
Headset spec: Traditional 1 1/8" headset
Rear hub spacing: 142 mm x 12 mm
Front hub spacing: 100 mm x 12 mm
Disc mount style: Flat mount
Cable routing: External
Wheel size: 700 c or 650 b
Front derailleur: 28.6 mm clamp on
Max tire size: 700 c x 38 mm or 650 b x 42 mm

Crankset

SRAM Rival 1 x 12

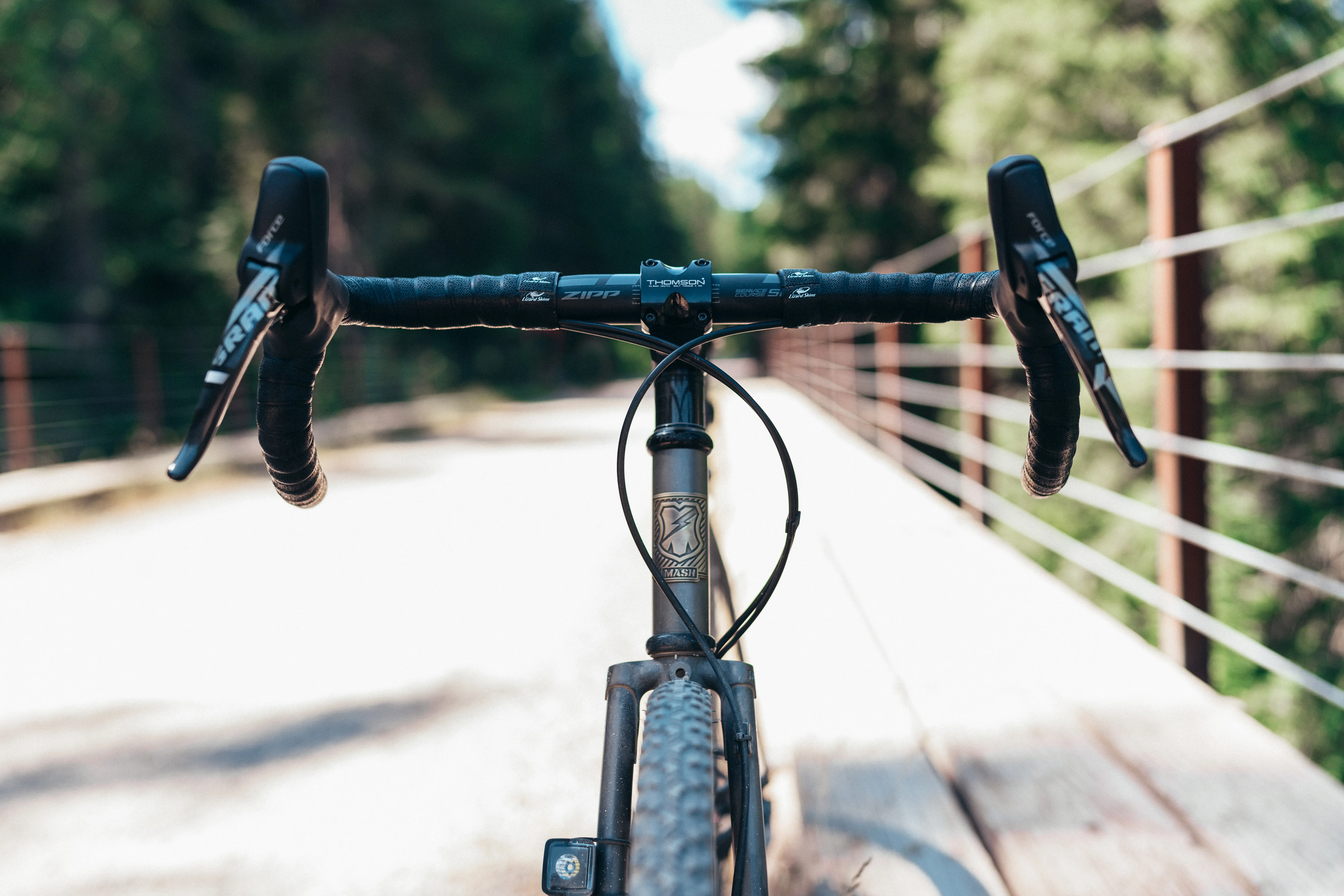

Bars

Zipp service course

Width: 41 mm

Wrap

Lizard Skins Unisex's DSP Bar V2 Handlebar Grip Tape, Jet Black, One Size, DSPCY

Stem

Thomson X4

Length: 70 mm

Wheelset

SRAM 303S (700c)

Hub

SRAM XDR

Casette

SRAM XG-1275 GX Eagle 12-Speed Cassette Black, B1, 10-52t

Derailleur

SRAM X01 Eagle 12-Speed Rear Derailleur Lunar, 52T

Tires

Pirelli Cinturato

Width: 35c

Front Caliper

SRAM Force Hydraulic Disk Brake - Flat Mount Front, 1X, 950mm, No Rotor

Rear Caliper

SRAM Force Hydraulic Disk Brake - Flat Mount Rear, 11 Speed, 1800mm, No Rotor

Front Disc Rotor

SRAM Centerline XR Rotor 160mm, Centerlock

Rear Disc Rotor

SRAM Centerline XR Rotor 140mm, Centerlock

Chain

SRAM Chain Pcxx1 Eagle black 126L power lock

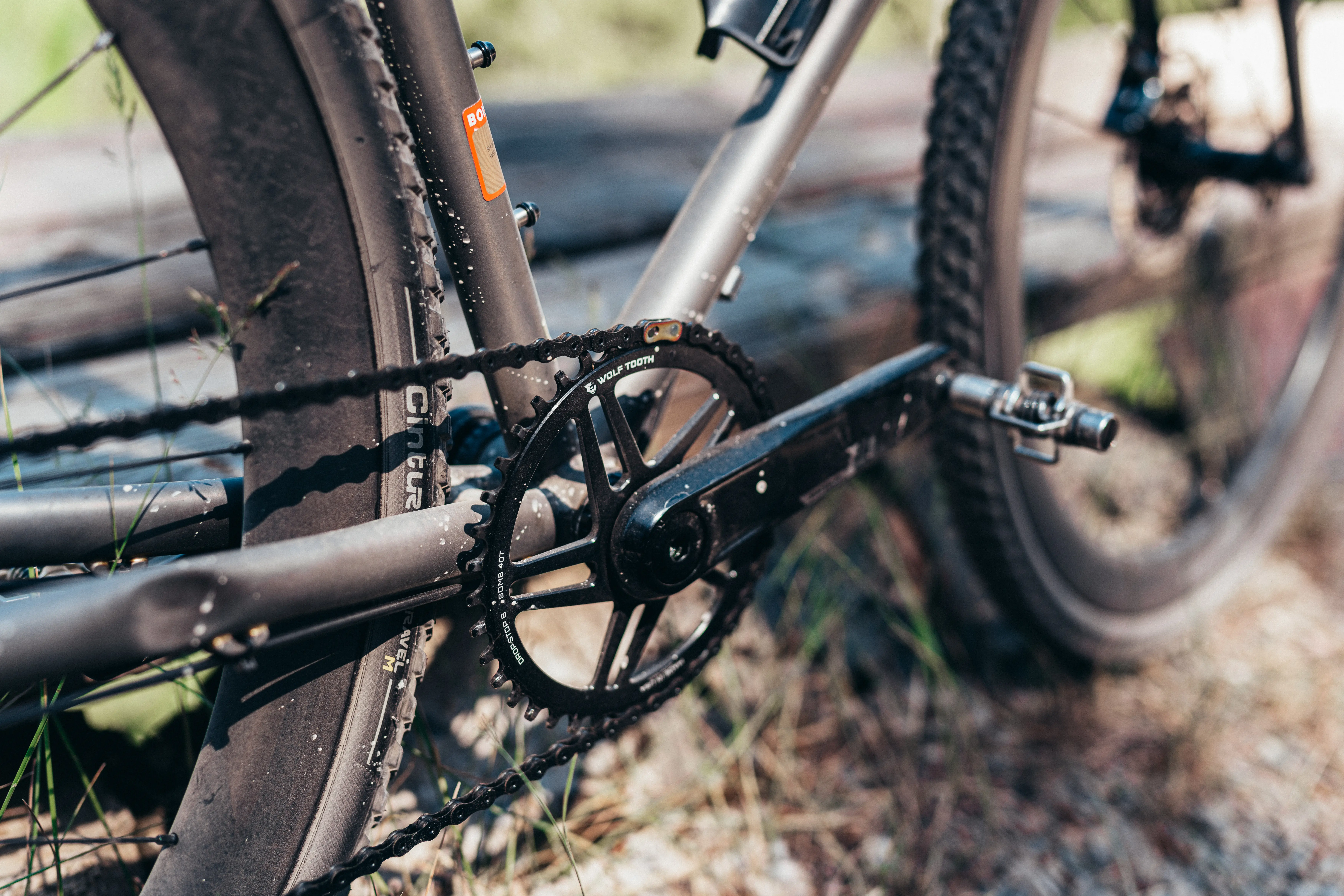

Chainring

Wolf Tooth Components: Direct Mount Chainrings for SRAM 8-Bolt × 1 (40T / Standard (45mm chainline) / Drop-Stop B)

Headset

Chris King NoThreadSet headset

Color: black sotto voce

Seat post

Whisky No.7 Carbon

Saddle

RICYRLK Bike Seat - Road Bike Saddle Comfortable MTB Saddle Lightweight Carbon Fiber Bicycle Saddle Cycling Leather Soft Seat Cushion

Bottom bracket

SRAM Dub BSA Bottom Bracket Road Wide, 68mm

Mullet interface

[Ratio 1 x 12 wide rear facing kit](https://ratiotechnology.com/product/1x12-wide-rear-cable/)

Specifications

Frame

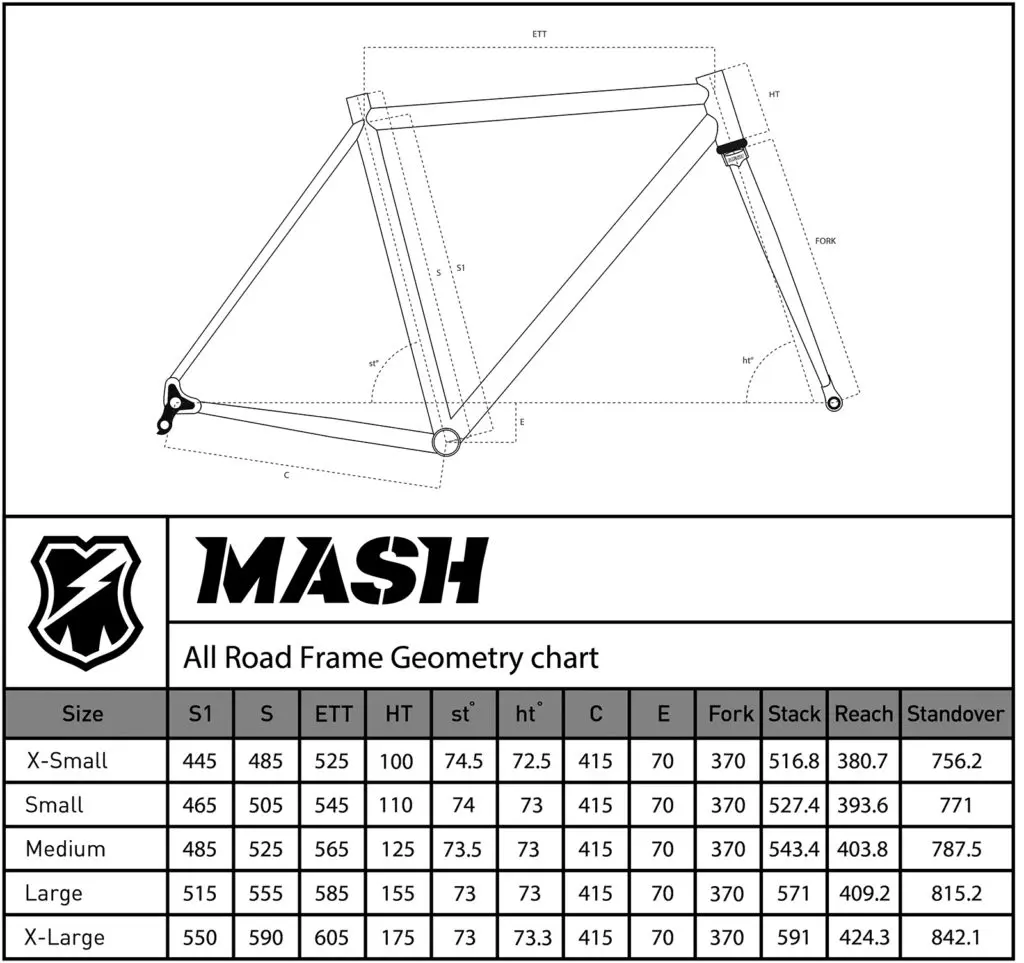

Geometry

Learnings

Facing

If you're purchasing a frame by itself, make sure to have a shop face the bike for you. You'll need to get disc brakes, bottom bracket and head tube faced to ensure good component fit.

Bedding in brakes.

Don't forget to bed your brakes in before going on any serious rides.

Protecting carbon levers

Your bike will fall over. Use helicopter tape on your carbon levers to keep them shiny.

XD is compatible with XDR

As the title says. I found out that XD hubs are compatible with XDR casettes. You just have to add a small adapter that typically comes with the hub to make the XDR casette interface.
